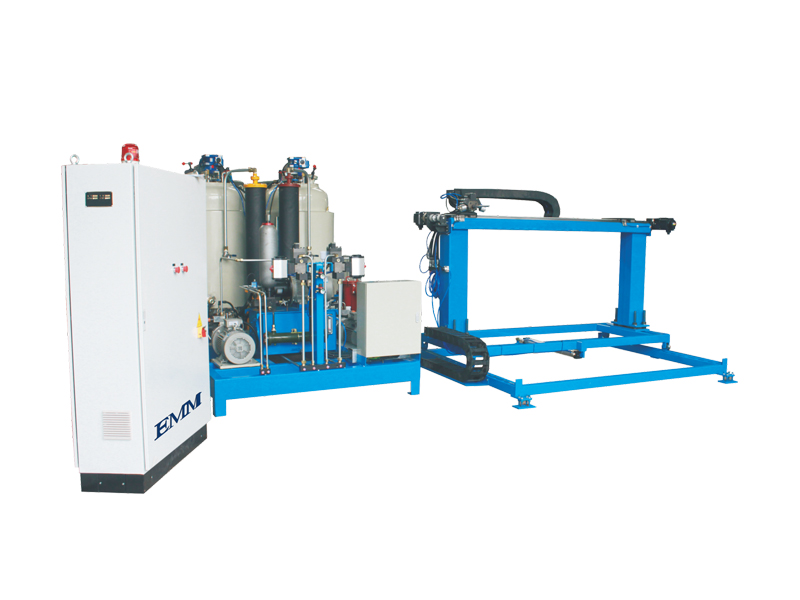

automatic continuous high pressure polyurethane foaming production machine,pu foam insulation wall panel boards making machine

high pressure foam machines for polyurethane

Product Description

This series is the one specially designed according to customers’ needs, which have good utility and good economy.

The users could simply select the machine type to produce different products. Additionally, its excellent performance-price ratio helps to establish high reputation in the market.

Structural features:

Double mixing, the vertical movement 1.5 meters, the horizontal movement 1.5 meters, 360Kg tanks/only, 99 time point guards, automatic feeding system, for continuous casting tube.

Mix head

High precision T-shaped mix head

High pressure impingement style mixing

Hydraulically controlled sequential operation

Metering Unit

High precision axial piston pump, A2VK

Variable output, robust manual adjustment via handwheel with integral precision measuring scale

Magnetic coupling ensures no material leakage

Digital pressure gauge for controlling pressure

Components Storage and Temperature Conditioning

Pressurized and jacked tanks with visual level tube

Digital pressure gauge for control and visualization of pressure with max. & min. alarm value

Electrical resistance heater and cooling water solenoid valve for temperature conditioning operation

Chiller for option

Electrical Control System

Fully controlled by Micro Computer

Colorful touch screen operator panel for simple and user friendly setting of machine parameter, status showing and pouring time, etc.

Alarm function with acoustic warning and text message

Our Services

OEM service offered.

Engineers available for overseas customer, for machine trial and teaching.

Suggest related material and mold for you, tury-key business to save your time.

Quick Details

Processing Type: Foaming Machine
Condition: New
Product Type: foam machine
Place of Origin: China (Mainland)
Brand Name: EMM
Voltage: 380V
Power(W): 22-98KW
Dimension(L*W*H): 1.8*2*1.6m
Certification: CE, ISO,TUV
Warranty: One Year
After-sales Service Provided: Engineers available to service machinery overseas
Name: automatic continuous high pressure Pu foaming machine
Coupling: Magnetic coupling without tem
