air filter gasket casting machine,air filter gasket making machine,air filter making machine

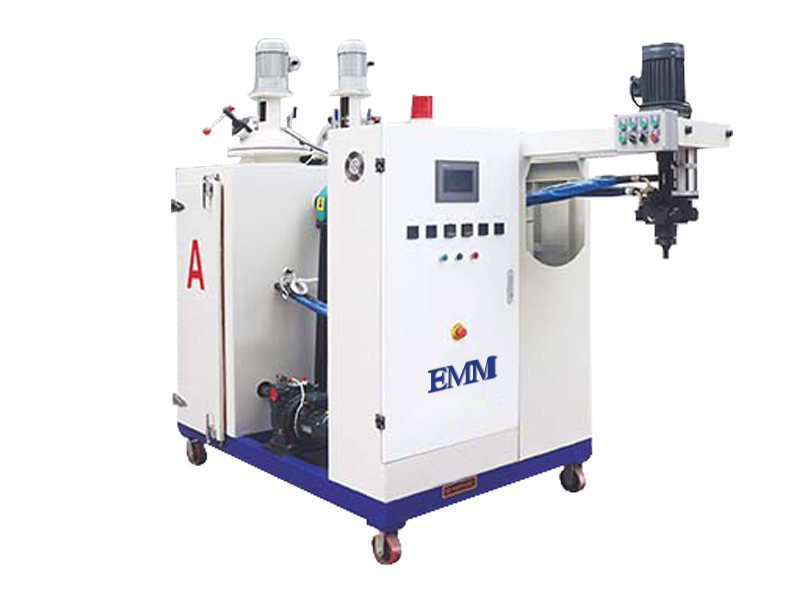

automatic filter gasket casting machine

Quick Details

Processing Type:Foaming Machine
Place of Origin: China (Mainland)
Brand Name:EMM
Voltage:380V/50HZ, 380V 50Hz
Warranty:1 Year
After-sales Service Provided:Engineers available to service machinery overseas
Machine type:polyurethane foaming machine
Application:pu air filter casting machine
Raw material:polyol and isocyanate
machine type:low pressure pu machine
raw material tank:120L
products size:max.500mm

Air filter is one of three filters which are indispensable for internal combustion engines. With fast development of car industry, taking polyether low density microporous elastomer as air filter cover is adopted excessively by car industry. The filter gasket casting machines manufactured by our company have easy operation, convenient maintenance, high level automation and stable performance.


Equipment Features:

The equipment is dedicated to the casting of sealing for car air filter, industrial filter, air purifier;
High precision metering pump, accurate metering, random error within±0.5%;
High performance anti drooling mix device with flowback adjusting function,

accurate material output synchronization and even mix;
Fully automatic control of material injecting time, cleaning frequency, automatic cleaning flush and air purge;
Adopting PLC, touch screen man-machine interface, and servosystem to control casting, move as per preset track, accurate positioning, which can meet the production need of round, rectangle, and special irregular shape items, high production efficiency, stable performance.
Additional functions optional: remote control, automatic feeding, high viscosity feeding pump, automatic cycle during shutdown , mixing head water flush, etc.;

Technical Parameter:

Total power: 15KW

Power: supply: 380V 50HZ

Compressed air: more than 0.6MPa

Casting Flow Rate: 1-50g/s

Weight: 1100kg

Rotated speed: 6000rpm

Mix type: Dynamic

Material tank volume: 40L-150L

Mix range: B: A=25-50: 100

Measure accuracy: around 0.5%
