cpu pu dumbbell casting machine,polyurethane dumbbell casting machine,pu dumbbell making machine

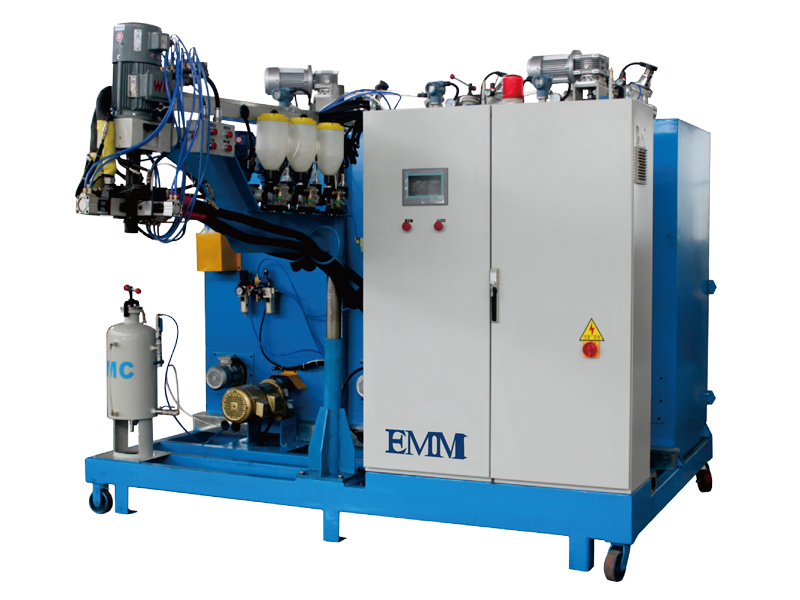

three component elastomer pouring machine


For the production of MDI type middle and low temperature elastomer items, such as shoe, wheel, dumbbell, suitcase wheel, gel and so on.

Equipment Features:

High temperature resistant low speed high precision metering pump, accurate measurement, random error within±0.5%;

Material output adjusted by frequency converter with frequency conversion motor, high pressure and precision, simple and rapid ratio control.

High performance mix device, accurate material output synchronization, even mix; New type mechanical seal structure avoids reflux problem.

High-efficiency vacuum device with special mixing head ensures no bubble in products.

Metering pump and material pipe equipped with heating device, automatic constant temperature adjusting, efficient and energy saving; Multi-point temp. control system ensures stable temperature, random error <±2℃.

Adopting plc and touch screen man-machine interface to control casting, automatic cleaning and air purge, stable performance, high operability, which can automatically distinguish, diagnose and alarm abnormal situation as well as display abnormal factor;

Quick Details

Processing Type:Foaming Machine
Brand Name:EMM
Voltage:380V/50HZ, 380V 50Hz
Dimension(L*W*H):L2450 X W2200 X H2350mm
Warranty:1 Year
After-sales Service Provided:Engineers available to service machinery overseas
Raw material:prepolymer, moca
Process type:cpu casting machine
Quality warranty:12 months
Certificate:CE ISO
mixing ratio:100:50-150

Technical Parameters:

Applicationcasting PU ealstomer
Output1.8-7.2kg/min; 3.6-18kg/min; 7.2-31kg/min; 15-50kg/min
Material bucket volume30L-500L
Injection Pressure0.01-0.1Mpa
Injection time0.5~99.99S (correct to 0.01S)
Mixing headAround 6000rpm, forced dynamic mixing
Compressed air requirementDry, oil free P:0.6-0.8MPa


Vacuum pump2X-8;2X-15

speed of exhaust: 8L/S;15L/S

Input powerThree-phrase five-wire,380V 50HZ
Temperature control system25~35KW
Color (selectable)White/Blue/Red
