polyurethane elastomer pouring machine

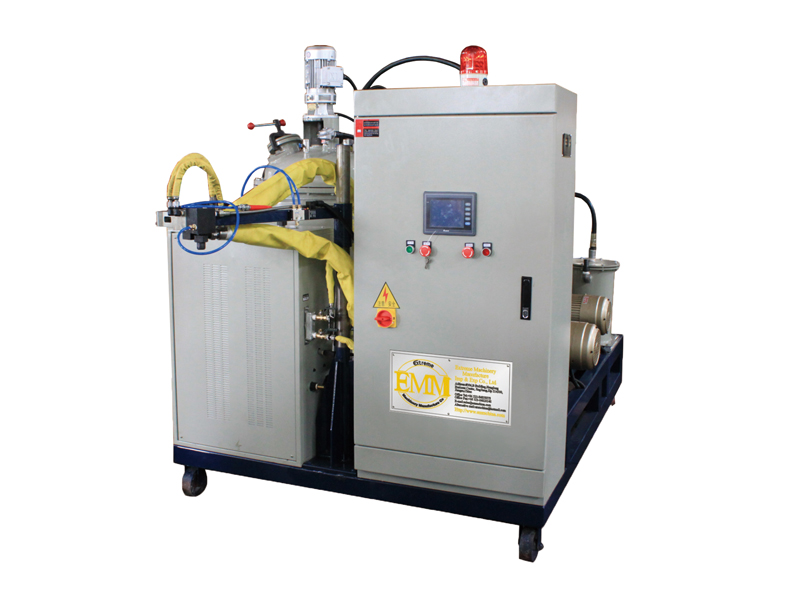

Polyurethane Elastomer Pouring Machine

Equipment Features:

Homogeneous mixing, no bubbles.
Hot oil circulation constant temperature system
High precision metering pump
PLC touch screen human-computer interface control
Equipped with vacuum degassing device.


Sandwich type material tanks, good heat preservation.
PLC touch screen human-computer interface control,easy to use, clear operation status situation.
New type mixing head, even mixing, low noise, sturdy and durable .
High precision pump, accurate metering.
Easy for maintenance, operation and repair.
Low energy consumption.

Technical Parameters:

Voltage380V 50Hz
Output250-800 g/s; 1-3.5kg/min;2-5kg/min; 3-8kg/min; 5-15kg/min
Material bucket volume30L-500L
Injection Pressure0.01-0.1Mpa
Injection time0.5~99.99S (correct to 0.01S)
mixing headAround 6000rpm, forced dynamic mixing
compressed air requirementDry, oil free  P:0.6-0.8MPa
Vacuum requirementP:6X10-2Pa
speed of exhaust:15L/S
Input powerThree-phrase five-wire,380V 50HZ
Temperature control system18~24KW
Color (selectable)Cream-colored / deep blue
