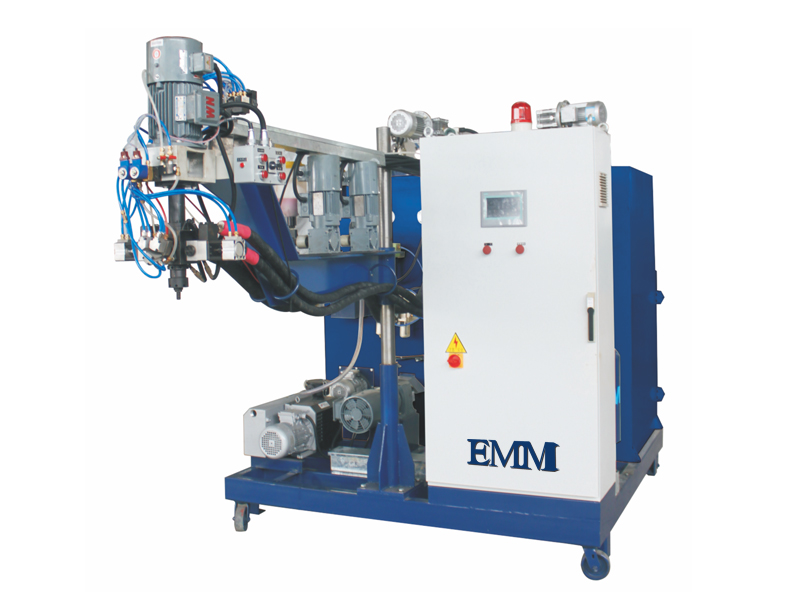

pu elastomer casting machine for polyurethane wheels

EMM106 pu elastomer casting machine for polyurethane wheels

pu elastomer casting machine for polyurethane wheels

Quick Details


Processing Type:Foaming Machine
Condition:New
Product Type:casting machine, Polyurethane equipment
Place of Origin: China (Mainland)
Voltage:3*380V/50HZ
Power(W):about 18kw
Dimension(L*W*H):about 2000*1500*2200
Weight:about 1500kg
Certification:ISO9001-2000
Warranty:ONE YEAR
After-sales Service Provided:Engineers available to service machinery overseas
Machine type:QA-S
Machine output:1-3kg/min
Pump origin:Germany Barmag
color:cream and blue
Heating method:electric heating

Characteristic


1. Stainless steel tanks

2. The new design mixing head ,regulation pouring pressure alone and cyclic pressure ,and the pressure can auto regulation .

3. Adopting Germany-made high-precision metering pumps.

4. The tanks ,pipes and mixing head's temperature are heated independently by electric.

5. Intelligent management system, through the relevant software to monitor and display all of the machines work parameters .

6. Modular design, enhance the flexibility of the system.

Pu elastomer casting machine for pu roller

item

descriptionproducing area quantity
1Machine frameChina1set
2A metering unitMetering pump: Germany Barmag

Motor: Taiwan

1set
3B metering unitMetering pump: Germany Barmag;

Motor: Taiwan

1set
4Pressure limit and control unitPressure switch: American money enterprises

Other:China

2sets
5Flow controls and filling unitChina2sets
6A net like filterChina ST50-2A(300μm)1set
7B net like filterChina SG50-2A(200μm)1set
8Mixing headChina1set
9Jib armChina1set
10A tank 150LChina1set
11B tank 60LChina1set
12Electric control systemPLC,input/output: Delta

Low-pressure electric,button: Schneider electric

Frequency converter: Delta

Other:China

1set
13Piping systemLow-pressure pipe:China

Electromagnetic valve:YADEKE(Taiwan)

1set
14Deaeration system of the vacuumVacuum pump: Germany VC50

Buffered barrel:20L

1set
15Tank ovenChina2sets
