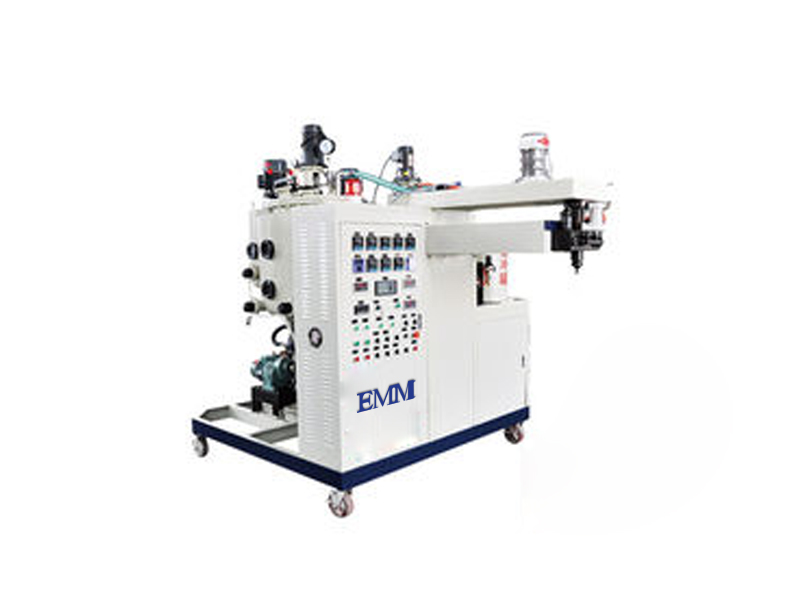

PU Wheel Making Machine

Quick Details

Processing Type:Foaming Machine
Brand Name:EMM
Voltage:380V/50HZ, 380V 50Hz
Dimension(L*W*H):L2450 X W2200 X H2350mm
Warranty:1 Year
After-sales Service Provided:Engineers available to service machinery overseas
Raw material:prepolymer, moca
Process type:cpu casting machine
Quality warranty:12 months
Certificate:CE ISO
mixing ratio:100:6-18

Equipment Application:

PU elastomer casting machine is fit for making sealing element, wheel, roller, sieve, impeller, OA machine, skating wheel, buffer, and other kinds of CPU products.

Equipment Features:

High temperature resistant low speed high precision metering pump, accurate measurement, random error within±0.5%;
Material output adjusted by frequency converter with motor, high pressure and precision, simple and rapid ratio control;
High performance mixing device, adjustable pressure, accurate material output synchronization and even mix; New type mechanical seal structure avoids reflux problem.
High-efficiency vacuum device with special mixing head ensures product no bubbles.
Adopting electromagnetic heating to heat transfer oil, efficient and energy saving; Multi-point temp. control system ensures stable temperature, random error <±2℃.
Adopting PLC and touch screen man-machine interface to control casting, automatic cleaning flush and air purge, stable performance, high operability, which can automatically distinguish, diagnose and alarm abnormal situations as well as display abnormal factors;

Technical Parameters:

oltage380V 50Hz
Output100-800 g/min; 1-3.5kg/min;2-5kg/min; 3-8kg/min; 5-15kg/min;12-30kg/min
Material tank volume30L-500L


Injection Pressure0.01-0.1Mpa
Injection time0.5~99.99S (correct to 0.01S)
Mixing headAround 6000rpm, forced dynamic mixing
Compressed air requirementDry, oil free  P:0.6-0.8MPa


Vacuum pump2X-15 Speed of exhaust:15L/S
Input powerThree-phrase five-wire,380V 50HZ
Temperature control system18~24KW
Color (selectable)White/Blue/Red
