china manufacturer polyurethane pu memory pillow foaming machine,memory pillow making machine

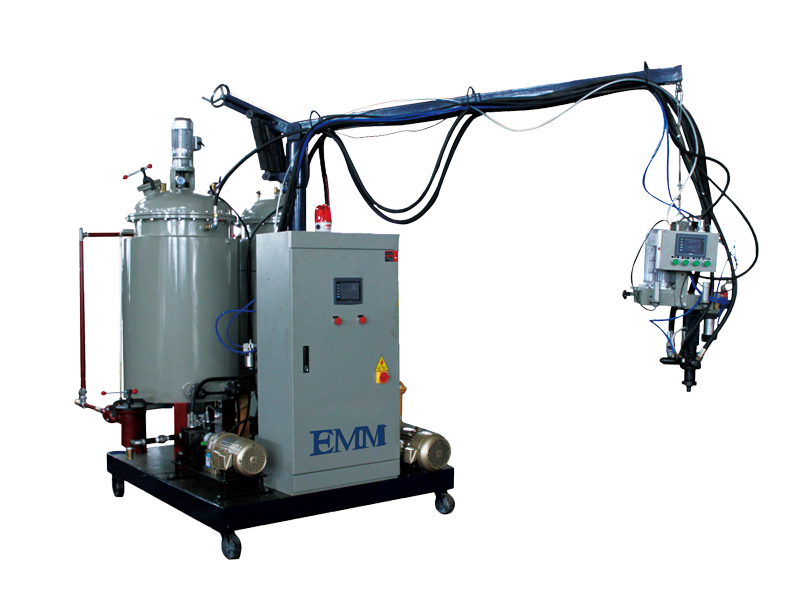

low pressure pu foaming machine

Technical Parameter:

Injection output: 2-6000g/s
Material tank volume: 30L-500L
Mixing ratio range: 100:28~48~100
Mixing head: 2800-5000rpm, forced dynamic mixing
Compressed air needed: dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned)
Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)
Temperature control system: heat:2×3KW
Input power: three-phase five-wire 380V 50HZ Other power customizable
Rated power:8KW-25KW
Color( customizable): White/Red/Blue
Weight: 1000Kg-1500Kg
Dimension: 3200(L)*1650(W)*2650(H)mm

Equipment Overview:

PU foaming machines have wide application in the market, which have features of economy and convenient operation and maintenance,etc. The machines can be customized according to customers' requirement for various output and mixing ratio.

Application Cases :

Pillow, chair, seat cushion,wheel, crown molding, wall panel, steering wheel, bumper, integral skin, fast rebound, slow rebound, toys, knee pad, shoulder pad, fitness equipment, thermal insulation material filling, bicycle cushion, car cushion, hard foaming, refrigerator material, medical appliance, sole etc.

Quick Details

Processing Type: Foaming Machine
Brand Name: EMM
Voltage: 380V/50HZ
Power(W): 30kw
Dimension(L*W*H): L3200 x W1700 x H2700mm
Weight: 2500kg
Certification: CE
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Machine type: polyurethane foaming machine
Power: 18~25Kw
Application: polyurethane products produce
Raw material: polyol and isocyanate
Output: 2-6000g/s
voltage: 380V 50HZ
machine type: low pressure pu machine
