low pressure polyurethane pu floral foam sponge mixing machine for picture frame

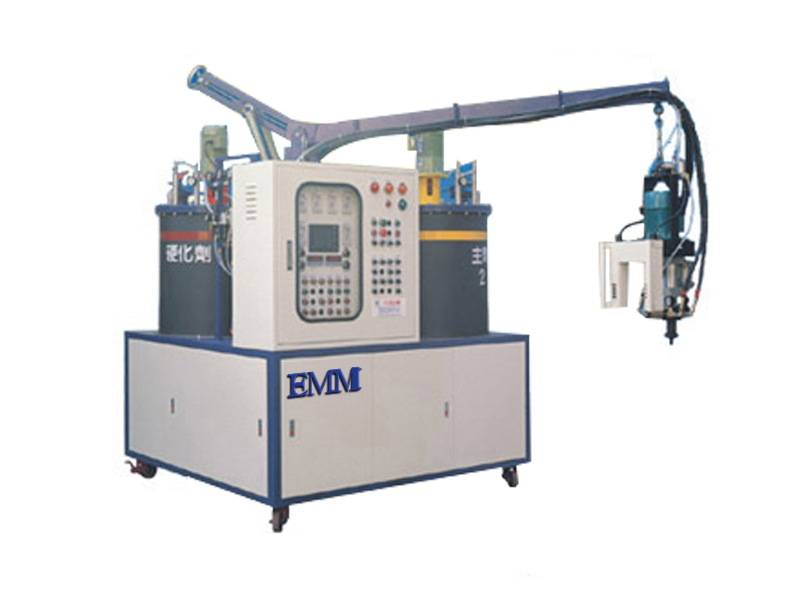

Machine for PU shoes and Seats

Product Description


Market users most polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer's request various pours out of the machine
Product Features of low pressure pu machine:
1.Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
2.Adding material sample test system, which can be switched freely without affecting normal production, saves time and material;
3.Low speed high precision metering pump, accurate ratio, random error within ±0.5%;
4.Material flow rate and presure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;
5.High-performance mixed device, accurately synchronous materials output, even mixture. New leakproof structure, cold water cycle interface reserved to ensure no blockage during long downtime;
6.Adopting PLC and touch screen man-machine interface to control the injection, automatic cleaning and air flush, stable performance, high operability, automatically distinguish, diagnose and alarm abnormal situation, display abnormal factors;

Quick Details


Processing Type: Foaming Machine
Condition: New
Product Type: Foam Net
Place of Origin: China (Mainland)
Brand Name: EMM
Voltage: 380v
Power(W): About 168KW
Dimension(L*W*H): 4100(L)*1250(W)*2300(H)mm
Weight: about 1200kg
Certification: CE, UL
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Name: low pressure polyurethane mixing machine
filter: self-cleaning filter
material feeding: automatic feeding system
control system: PLC
metering pump: precise metering
foam type: rigid foam
output: 90~450kg/min
tank volume: 500L
power: three-phase five-wire 380V
color: cream-colored/ orange/ blue
