polyurethane sole,forming automatic machine

forming automatic machine

Quick Details

Processing Type: Foaming Machine
Product Type: foam machine, Polyurethane equipment
Place of Origin: China (Mainland)
Brand Name: EMM
Voltage: 3*380V/50HZ
Power(W): 1800
Dimension(L*W*H): 1800*1600*2200
Weight: 1300KG
Certification:ISO9001-2000, ISO9001-2000
Warranty: ONE YEAR
After-sales Service Provided: Engineers available to service machinery overseas
color: customize


*polyurethane sole /forming machine
*easy maintenance
*simple operation
*easy moving

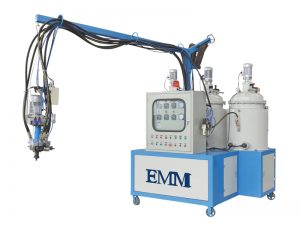

polyurethane sole /forming machine

1. The mixing head uses high-speed compound mixing mechanism, it can reduce waste material by at least 50% and work Constantly .The pouring valve, a patent product, never weares or causes lock-up, without the common problem of outlet time difference .Outside the mixing head , there is a cooling installation

2. Material conveyer uses precise metering pump and electric pause counter, with a tolerance of less than three thousandths

3. The-stainless steel barrel,with a capacity of 120L, a double-layered insulating mechanism, uses an independent thermostated container to supply heat ,keeping the heat from charging.

4. Using PLC computer-controlled box ,stable and without disturbance , which can store 800 kinds of norm of products ,amount calculated by gram , pouring by a single button, auto -watching, covenient and accurate ,Ele-ctric elements are imported. Temperature and pressure can be watched and surveyed timely
