high density china low pressure PU foam insulation machine EMM084-1

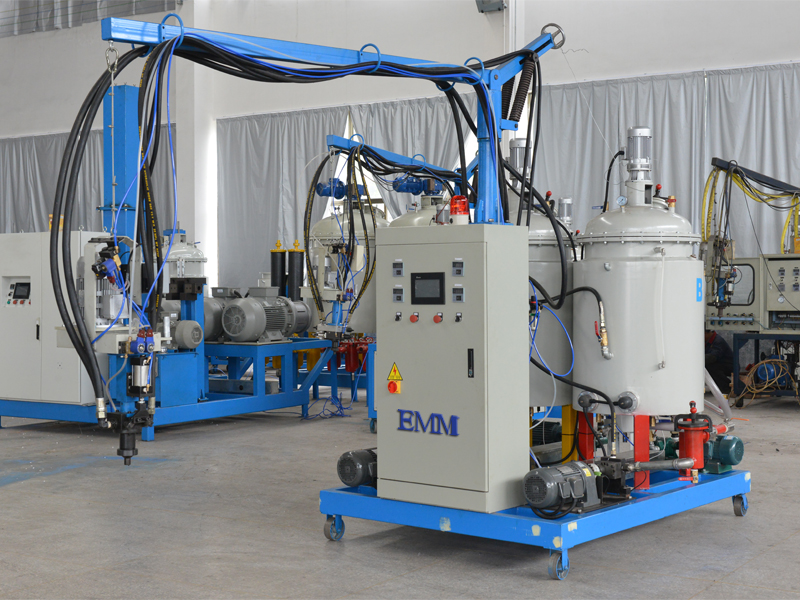

2-component Polyurethane Low pressure machine

Quick Details

Processing Type: Foaming Machine, Foaming Machine
Condition: New
Product Type: Foam Net, Foam Net
Place of Origin: Jiangsu, China (Mainland)
Brand Name: EMM
Model Number: EMM084-1
Voltage: 380/220V
Power(W): 12KW
Dimension(L*W*H): according to actual machine model, depend on tank value
Weight: 1000KG
Certification: CE
Warranty: 1 year
After-sales Service Provided:Engineers available to service machinery overseas
color: optional
Metering pump: Germany/ China
Advantage 1: high efficiency
Advantage 2: stable quality
Advantage 3: energy saving
Advantage 4: automatic power off
Special: High Density

Product Description

1.1 Device Model: EMM084-1

1.2 For foam types: soft foam, semi-rigid foam,self-skinning foam,rigid foam

1.3 For the viscosity: (22 °C)

Polyether polyol: ~ 2000mPas

Polyisocyanate: ~ 1000mPas

1.4 Pouring output: 10-60g/s (1:1),,adjust the mixing ratio range: 5:1 to 1:1

1.5 Injection time: 0.01 ~ 9.99 (accurate to 0.01s)

1.6 The number of injection procedures:

Manual injection: 99

Automatic injection: 99

1.7 Measurement Unit: For the measurement of components, measurement accuracy of ≤ 0.5%.

Composed by brackets, mechanical stepless speed regulation gear motor, couplings, high-precision volumetric gear metering pump and valve, pressure sensor, rotational speed sensor. Speed gear motor and metering pump are connected through the connecting shaft..

1.8 Pressure limitation & control system

1.9 Flow measurement and control system

1.10 Component filter

1.11 Mixing head

1.12 Rack and mixed head cantilever system

1.13 Mixed head cleaning system

1.14 Polyether polyol feed tank: 2

1.15 Polyisocyanates tank material: 1

1.16 Temperature Control Unit

1.17 Electrical Control System

1.18 Piping and air handling system

1.19 Supply and equipment weight, area:

Input voltage: 3 × 380V/50HZ (AC)

Control voltage: 220V/24V

Relay Voltage: 24V

( Input power: 12KW About)

Weight: 1800KG
