China low pressure flexible polyurethane foam machine for pu motorcycle seat cushion

Product Description

Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged; the mixing head produces complete material stirring; precise metering (K series precision metering pump control is exclsively adopted); single button operation for convenient operation; switching to a different density or color at any time; easy to maintain and operate.

Control: Microcomputer PLC control; TIAN electrical components exclsively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotation rate digital tracking and display and automatic control; abnormity or fault alarm devices. Imported frequency converter (PLC) can control the proportion of 8 different products.

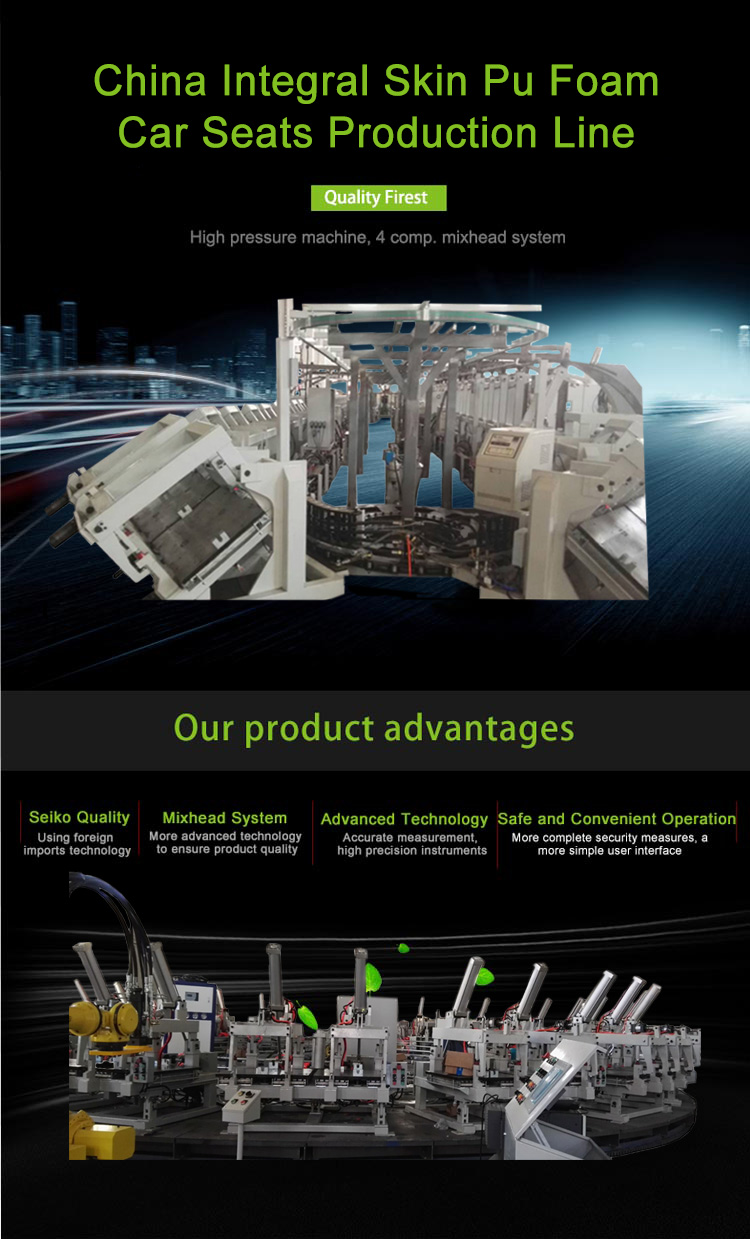

PU machineHigh pressure machine, 4 comp. mixhead system
Production methodContinuous moving type by turn table
RobotCapacity 165kg
PU injection1) Automatic pouring into open mould by industrial Robot
2) Manual pouring by worker
Mould carrier type1) Open and close by hydraulic
2) Open and close by Guide steel bar
Mould locking and unlockingAuto. locking & unlocking by air unit
Mould carrier4~24 carriers
Line sizeApprox. 4~12m(D) x 5m(H)
Line speedApprox. 100~200mm/ sec, changeable type
The shot cycle timeApprox. 10~15 sec
Curing timeApprox. 4min
Heating unit4 kw/h (2carrier/ one heating unit), Hot water by electric heating
Seat weightApprox. Min 310g~ Max 3,200g
Seat consistsFront cushion and back Rear cushion and back

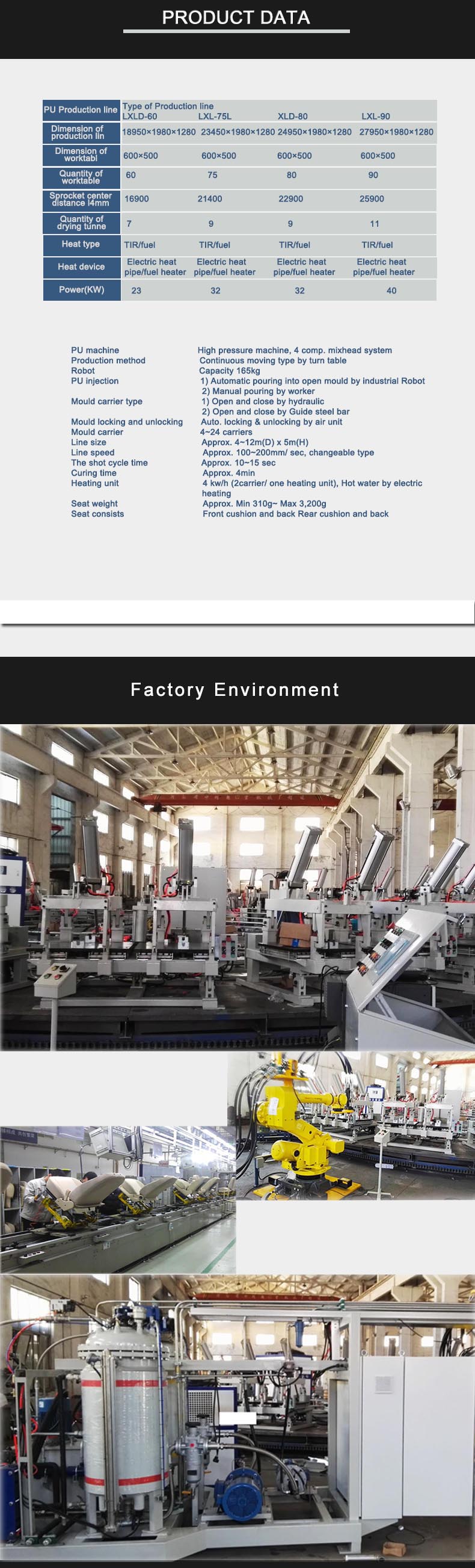

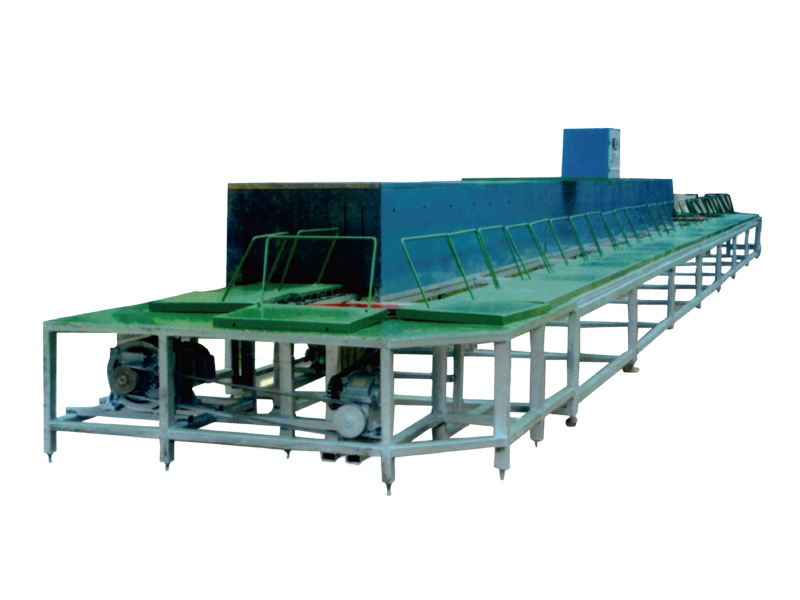

PU Production lineType of Production line
Dimension of production line18950×1980×128023450×1980×128024950×1980×128027950×1980×1280
Dimension of worktable600×500600×500600×500600×500
Quantity of worktable60758090
Sprocket center distance l4mm16900214002290025900
Quantity of drying tunnel79911
Heat typeTIR/fuelTIR/fuelTIR/fuelTIR/fuel
Heat deviceElectric heat pipe/fuel heaterElectric heat pipe/fuel heaterElectric heat pipe/fuel heaterElectric heat pipe/fuel heater

Quick Details

Condition: New
Application: car seat making
Plastic Processed: Polystyrene
Screw Design: Double-screw
Automatic Grade: Automatic
Place of Origin: China (Mainland)
Brand Name: EMM
Voltage: 380V, 220V or 380V
Power(W): 22kw,25kw,30kw,...
Dimension(L*W*H):Machine Model
Weight: 200T
Certification: ISO CE SGS UL, CE, ISO9001
After-sales Service Provided: Engineers available to service machinery overseas
Name: foam machine for sale
Raw material:pu(=iso+poly)
Product:Car Seat Mat
Usage: Wide Usage
Product Type: PU flexible foam
Other name:PU car seats production line
Color: Customised
Warranty: life-time
